- High pumping rates
- Gentle fish passage
- Marine-grade aluminium
- Hydraulic drive
ENGINEERED FOR GENTLE FISH TRANSFER
Move Fish Efficiently.
Protect Every Catch.
PETEC FP-Series hydraulic fish pumps are designed to transfer fish at high pumping rates while helping minimise handling damage. Well-spaced impeller blades and a smooth exit port support careful fish passage.
Seawater-resistant aluminium construction is suited to marine operations. A high-speed fixed-displacement hydraulic motor drives the pump, while stainless-steel cages and rubber buffer strips provide added protection.
- High pumping
rates - Gentle fish
passage - Hydraulic
drive
Benefits
Features
FP-SERIES MODELS & SPECIFICATIONS
Compare FP-Series Models.
Compare FP-200-CH, FP-320-CH and FP-355-CH operating figures, then contact our team for pump-selection advice.
- 450–1,500 tons/hr
- Hydraulic drive
- Marine-grade aluminium
FP-Series Models
TYPICAL CAPACITY FROM 450 TO 1,500 TONS/HR.

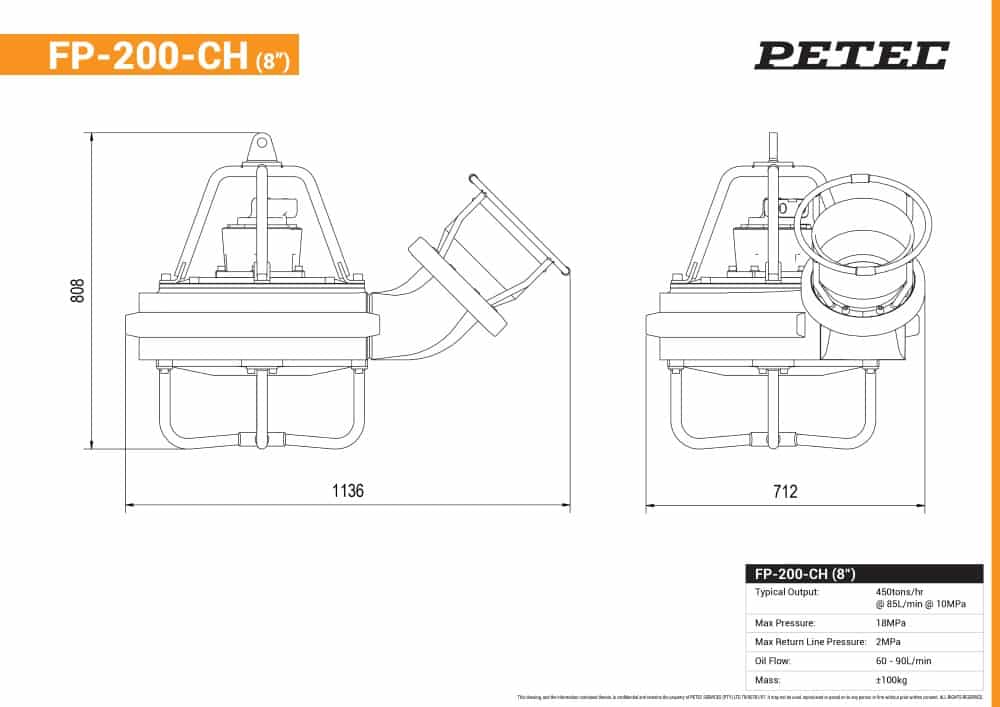

- FP-200-CH
- 450 tons/hr at 85 L/min @ 10 MPa

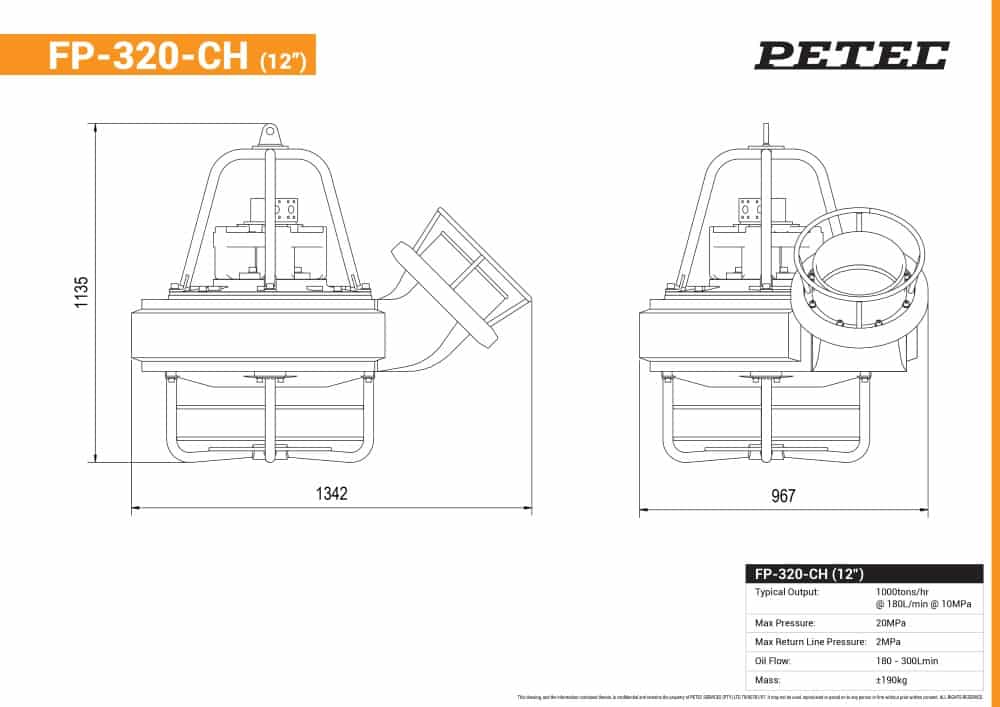

- FP-320-CH
- 1,000 tons/hr at 180 L/min @ 10 MPa

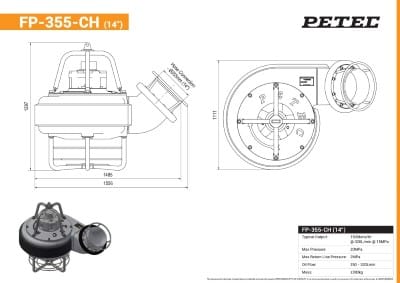

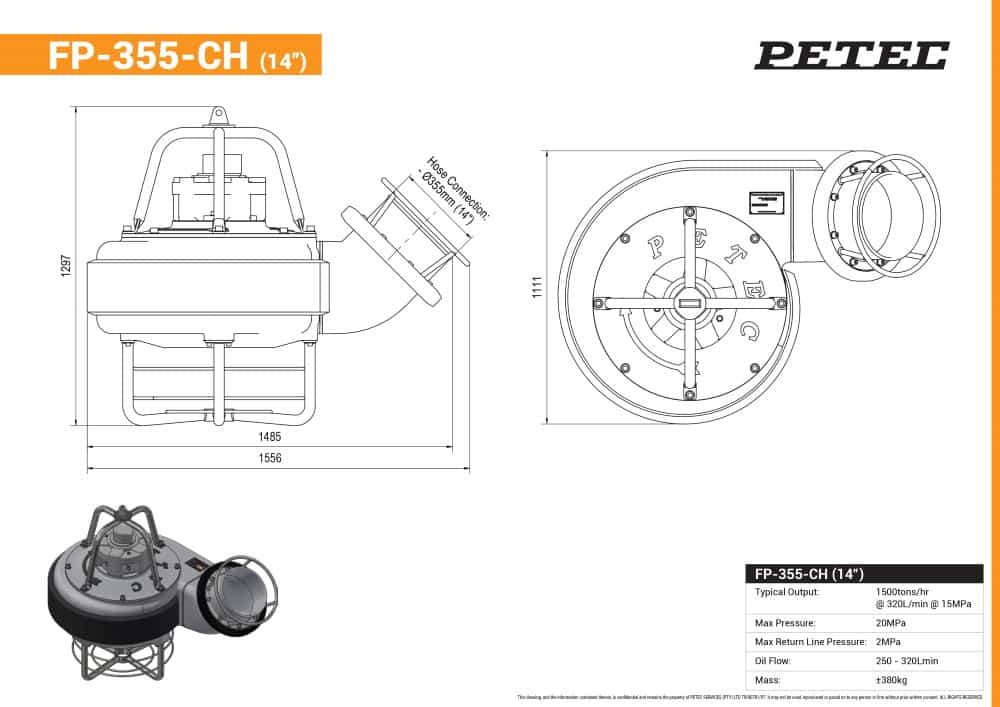

- FP-355-CH
- 1,500 tons/hr at 320 L/min @ 15 MPa
- Maximum pressure
- 18 MPa (FP-200-CH); 20 MPa (FP-320/355-CH)
- Oil flow
- 60–90 / 180–300 / 250–320 L/min respectively
- Approx. mass
- 100 / 190 / 380 kg respectively
Construction & Features
MARINE-GRADE. HYDRAULIC. BUILT FOR FISH TRANSFER.
Maximum return-line pressure is 2 MPa for all three models. Contact PETEC to confirm a suitable configuration for your vessel and hydraulic supply.
- Pump body
- Seawater-resistant aluminium
- Impeller
- Well-spaced blades
- Exit port
- Smooth port for fish passage
- Drive
- High-speed fixed-displacement hydraulic motor
- Protection
- Stainless-steel cage(s) and rubber buffer strips
- Outlets
- Various outlet-hose couplers
The operating figures shown here are the published FP-Series specifications; contact PETEC for model-selection and installation advice.
FP-SERIES Frequently Asked Questions
Your Questions, Answered.
What are the typical capacities of the FP-Series pumps?
Typical rates are 450 tons/hr for FP-200-CH, 1,000 tons/hr for FP-320-CH and 1,500 tons/hr for FP-355-CH at the published flow and pressure conditions.
How do the pumps help minimise fish damage?
Well-spaced impeller blades and a smooth exit port support careful fish passage.
What hydraulic pressure do the FP-Series models require?
Maximum pressure is 18 MPa for FP-200-CH and 20 MPa for FP-320-CH and FP-355-CH. Maximum return-line pressure is 2 MPa.
What protects the pump in marine operation?
The pumps use seawater-resistant aluminium construction with stainless-steel cage(s) and rubber buffer strips for added protection.
What drives the FP-Series fish pumps?
The FP-Series pumps are driven by a high-speed fixed-displacement hydraulic motor. Various outlet-hose couplers are available.
