NET
HAULERS
CONTROLLED NET HAULING. EFFICIENT DECK OPERATIONS.

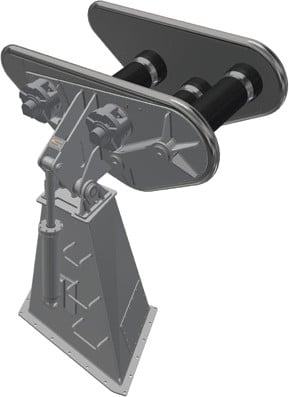

PETEC 3RNH-Series net haulers use three synchronised powered rollers to pull and guide fishing nets with reduced slippage and wear. An off-centre roller helps maintain even net contact, while the tilting head supports accurate net alignment and efficient stacking.
- Three synchronised powered rollers
- Even net guidance
- 95° head tilt
- Up to 12 tons pull at 200 bar
ENGINEERED FOR CONTROLLED NET HANDLING
Haul Nets. Guide Precisely.
Stack Efficiently.
PETEC 3RNH-Series net haulers are designed to haul and guide fishing nets while supporting efficient net stacking.
Three powered, synchronised rollers provide uniform pulling. An off-centre roller helps guide the net evenly, and the tilting head allows accurate alignment while reducing deck space requirements. Marine-grade stainless steel is used on the inner and outer net guide plates and roller slip rings.
- Three powered
rollers - Even net
guidance - 95° head
tilt
Benefits
Features
3RNH-SERIES MODELS & SPECIFICATIONS
Compare 3RNH-Series Models.
Compare the 3RNH-530-SF2 and 3RNH-600-SF2 models by maximum pull, roller speed, oil flow and mass.
- Up to 12 tons pull
- 30–40 rpm roller speed
- 95° head tilt
3RNH-Series Models
TWO MODELS. CONTROLLED NET HAULING.
- 3RNH-530-SF2
- Max pull: 6.0 tons at 160 bar; 7.5 tons at 200 bar, Ø315
- 3RNH-600-SF2
- Max pull: 9.0 tons at 160 bar; 12.0 tons at 200 bar, Ø315
- Roller speed
- 30–40 rpm for both models
- Head tilt angle
- 95°
- Oil flow
- 530: 180–200 L/min; 600: 200–250 L/min
- Mass
- 530: approx. 3 tons; 600: approx. 3.5 tons
Roller System & Features
SYNCHRONISED. LOW-SLIP. BUILT FOR DECK OPERATIONS.
The 3RNH-Series combines powered rollers with guided net contact and a tilting head for alignment and stacking.
- Rollers
- Three powered, synchronised rollers
- Net guidance
- Off-centre roller for even net contact
- Head tilt
- 95° for net alignment and reduced deck area
- Guide plates
- Marine-grade stainless steel, inner and outer
- Roller slip rings
- Marine-grade stainless steel
- Net handling
- Supports efficient net stacking
Contact PETEC to confirm the model and hydraulic supply requirements for your vessel.
3RNH-SERIES FREQUENTLY ASKED QUESTIONS
Your Questions, Answered.
What is the maximum pull of each 3RNH-Series model?
The 530 model pulls 6.0 tons at 160 bar and 7.5 tons at 200 bar. The 600 model pulls 9.0 tons at 160 bar and 12.0 tons at 200 bar, at Ø315.
How does the 3RNH-Series guide and pull nets?
Three powered and synchronised rollers pull the net, while an off-centre roller helps provide even net guidance and contact.
What is the head tilt angle?
The head tilts up to 95° to support net alignment and reduce the deck area required.
What hydraulic oil flow is required?
The 530 model requires 180–200 L/min, and the 600 model requires 200–250 L/min.
Which parts are made from marine-grade stainless steel?
The inner and outer net guide plates and roller slip rings use marine-grade stainless steel.
