- Compact footprint
- Durable clutch
- Quality gearbox
- Hydraulic operation
ENGINEERED FOR SECURE ANCHORING
Built To Perform.
Designed For Your Deck.

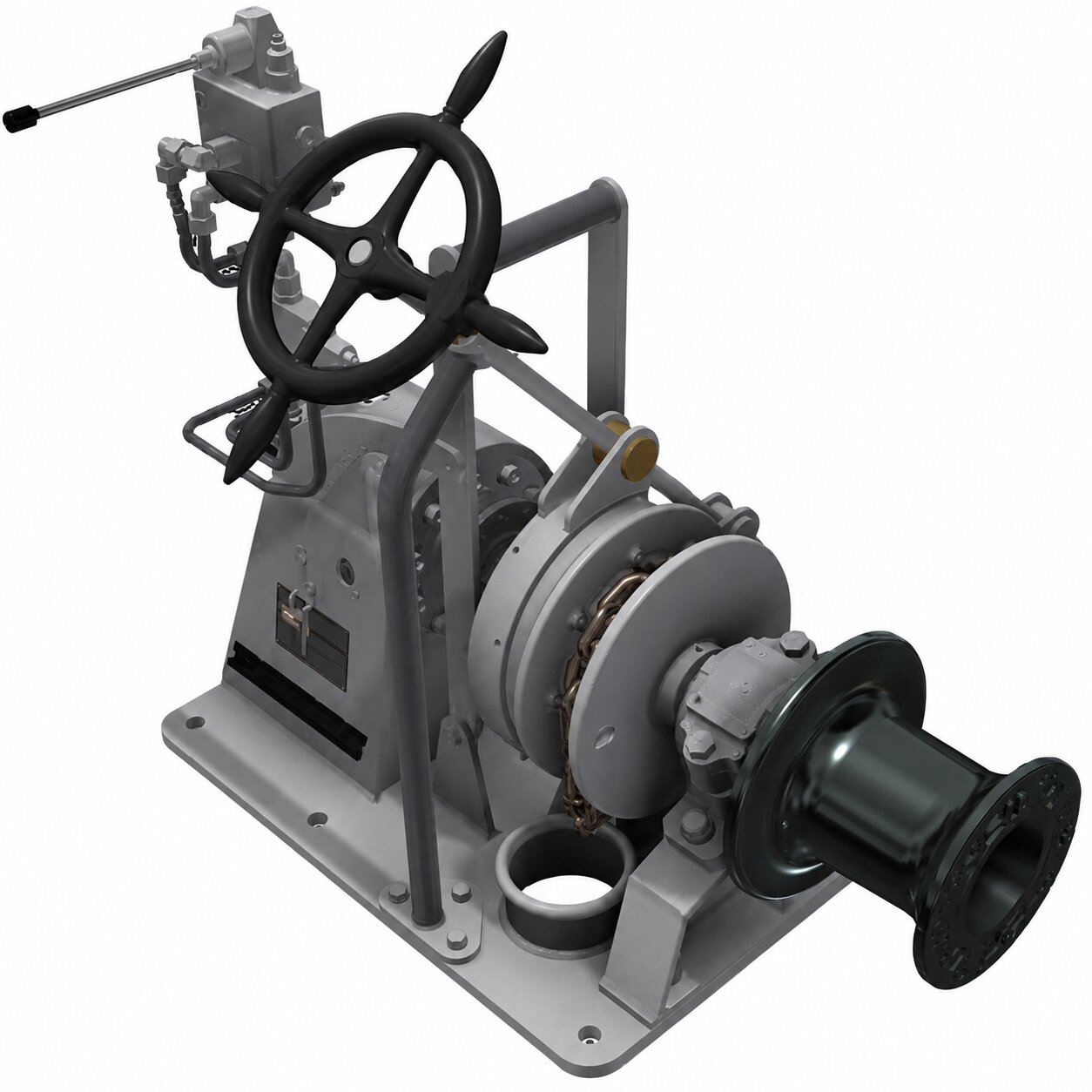

PETEC AW-Series anchor winches are designed for marine anchoring where deck space is limited. An engageable chain gypsy works with a handwheel-operated band brake to control anchor deployment, while the warping head can operate independently for versatile rope handling.
The clutch mechanism is designed for quick, easy engagement and a large contact area to help minimise wear on the clutch and chain gypsy. A quality gearbox supports long service life and reduced downtime. PETEC can help you select an AW50-H or AW65-H anchor winch based on chain size, required pull, hydraulic supply and available deck space.
- Reliable
performance - Durable
clutch mechanism - Compact
deck footprint
Benefits
Features
AW-SERIES MODELS & SPECIFICATIONS
Choose The Right Fit.
Compare chain sizes, pulling capacity and hydraulic requirements for your vessel.
- Compact design
- Hydraulic drive
- Marine engineering
AW-SERIES Frequently Asked Questions
Your Questions, Answered.
What is the difference between the AW50-H and AW65-H anchor winches?
The PETEC AW50-H is specified for 12 mm and 13 mm chain, with a maximum pull of 1 ton and a mass of approximately 350 kg. The AW65-H is specified for 16 mm and 20 mm chain, with a maximum pull of 1.5 tons and a mass of approximately 420 kg. Both models list a chain speed of 12–30 m/min and an oil flow of 40–60 l/min.
How do I select an AW-Series anchor winch for my vessel?
Select an AW-Series anchor winch by matching the chain size, required pulling capacity, available deck space and hydraulic supply to the model specifications. PETEC can review these requirements with you and recommend an AW50-H or AW65-H configuration for your vessel.
What hydraulic flow do AW-Series anchor winches require?
The AW50-H and AW65-H both specify an oil flow of 40–60 l/min and a chain speed of 12–30 m/min. Contact PETEC to confirm operating pressure and hydraulic-system compatibility before selecting or installing the winch.
Where can I download AW50-H and AW65-H technical drawings?
Download the AW50-H and AW65-H technical drawings using the model links in the specifications section above. PETEC can help you interpret the drawings and confirm dimensions, mounting arrangements and installation requirements for your vessel.
Does PETEC provide support after an anchor winch is installed?
Yes. PETEC provides support with commissioning, maintenance, repairs, spare parts and breakdown assistance for marine equipment. Contact the team with your AW-Series model and equipment details to arrange the support you need.
