NET
STACKERS

PRECISE NET GUIDANCE. EFFICIENT STACKING.

PETEC NS-Series net stackers guide fishing nets across the net bin for efficient stacking. A large base-pivot slew angle, high lifting arms and a slewing head support accurate net alignment, with hydraulic, electric and remote control options.

NS-SERIES

  • 3 tons max pull at 150 bar
  • 0–68 m/min net speed
  • 110° slew angle
  • Hydraulic, electric or remote control

ENGINEERED FOR EFFICIENT NET STACKING

Guide Nets. Stack Efficiently.
Maximize Net-Bin Coverage.

PETEC NS-Series net stackers are designed to maximize net-bin coverage and guide the net path accurately for efficient stacking.

A large slew angle at the base pivot, high lifting arms and a slewing head support smooth net alignment and operation. The stacker can be configured for hydraulic, electric or remote control. Marinized carbon steel construction supports a long service life, with replacement parts readily available.

  • Wide net-bin
    coverage
  • Precise net
    guidance
  • Flexible control
    options

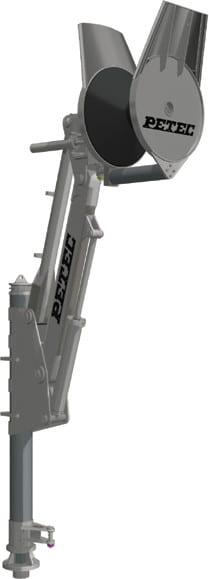

NS-Series Net Stacker

Benefits

  • Maximize net-bin coverage for efficient stacking.
  • Flexible net-path guidance supports smooth net handling.
  • Hydraulic, electric and remote control options support versatile installation.
  • Marinized carbon steel construction supports long service life.
  • Readily available replacement parts help minimize downtime.

Features

  • Large base-pivot slew angle supports broad coverage.
  • High lifting arms and slewing head support precise net alignment.
  • Hydraulic, electric or remote control operation.
  • Marinized carbon steel construction.
  • Long service life with readily available replacement parts.

NS-SERIES MODEL & SPECIFICATIONS

Compare NS-Series Specifications.

Review NS42-SF pull, speed, reach and slew specifications, then contact our team to confirm a suitable net-stacking configuration.

  • 3 tons max pull
  • 0–68 m/min net speed
  • 2.1–3.6 m stacking radius

NS-Series Specifications

NS42-SF NET STACKER.

Maximum pull
3 tons at Ø500 (150 bar)
Core speed
0–40 rpm
Net speed
0–68 m/min
Stacking radius
2.1–3.6 m
Slew angle
110°
Sheave head wrist
110°
Mass
Approx. 3.5 tons

Stacker Design & Features

FLEXIBLE. PRECISE. BUILT FOR DECK OPERATIONS.

The NS-Series is designed to guide nets accurately across the net bin and support smooth stacking operations.

Base pivot
Large slew angle for broad coverage
Lifting arms
High arms for precise net alignment
Stacker head
Slewing action for smooth net guidance
Control options
Hydraulic, electric or remote operation
Construction
Marinized carbon steel
Serviceability
Long service life and readily available replacement parts

Contact PETEC to confirm the ideal control configuration and installation for your vessel.

LET’S PLAN YOUR NET-STACKING SOLUTION

Speak To An Engineer.

Tell us about your net-bin dimensions, vessel layout, net path and preferred control system. Our team can help assess the NS42-SF for your operation.

  • Expert advice
  • Product selection
  • Ongoing support

NS-SERIES FREQUENTLY ASKED QUESTIONS

Your Questions, Answered.

What is the NS42-SF maximum pull?

The published maximum pull is 3 tons at Ø500 and 150 bar.

What are the core and net speed ranges?

Core speed is 0–40 rpm and net speed is 0–68 m/min.

What is the stacking radius?

The published stacking radius is 2.1–3.6 m.

What are the slew and sheave-head wrist angles?

The slew angle is 110° and the sheave head wrist angle is 110°.

Which control systems are available?

The net stacker can be operated hydraulically, electrically or remotely.
